AutoCAD Overhang Details

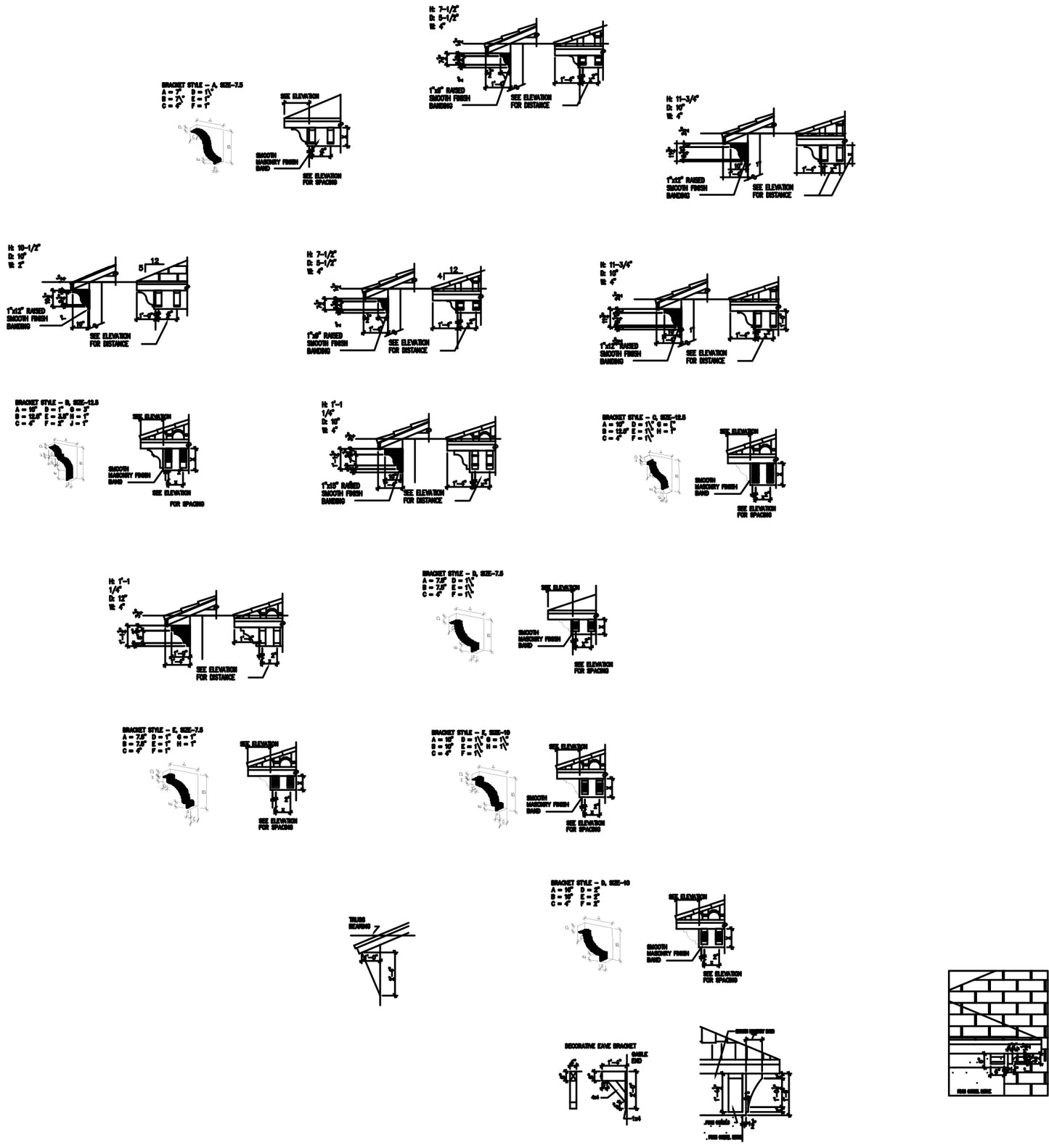

AutoCAD items that are included are shown.

We do not accept returns, exchanges, or cancellations. But please contact us if you have any problems with your order.

All DWG files are set for AutoCAD/LT for 2013 or newer. Files are set in Architectural but can be changed to any system.

All files can be manipulated to suit whatever project may require. Are items in model space at a scale 1:1

*DISCLAIMER*

These .dwg files are not for resale.

We are not responsible for your local building code and these details meet local building code standards. Please consult the local municipality for code requirements and restrictions.

We are available to help you through the design process. Contact us about your potential project. and we can help you through the design to construction documents, depending on the nee

AutoCAD items that are included are shown.
